Model range
ZTA5 / ZTA8 / ZTA12
robot modules
Rail Embedded Belt Module
For compact structures requiring belt-driven speed and flexible motor mounting.
Selection Entry
Model Range and Key Selection Information
Use this area to quickly judge whether the series fits the equipment layout, then confirm final parameters with catalog pages or drawings.
ZTA5ZTA8ZTA12
Repeatability
±0.04 mm
Max speed
Up to 2000 mm/s
Max stroke
ZTA5/ZTA8 1250 mm, ZTA12 1200 mm
Belt width
10 / 15 / 22 mm
Motor mounting

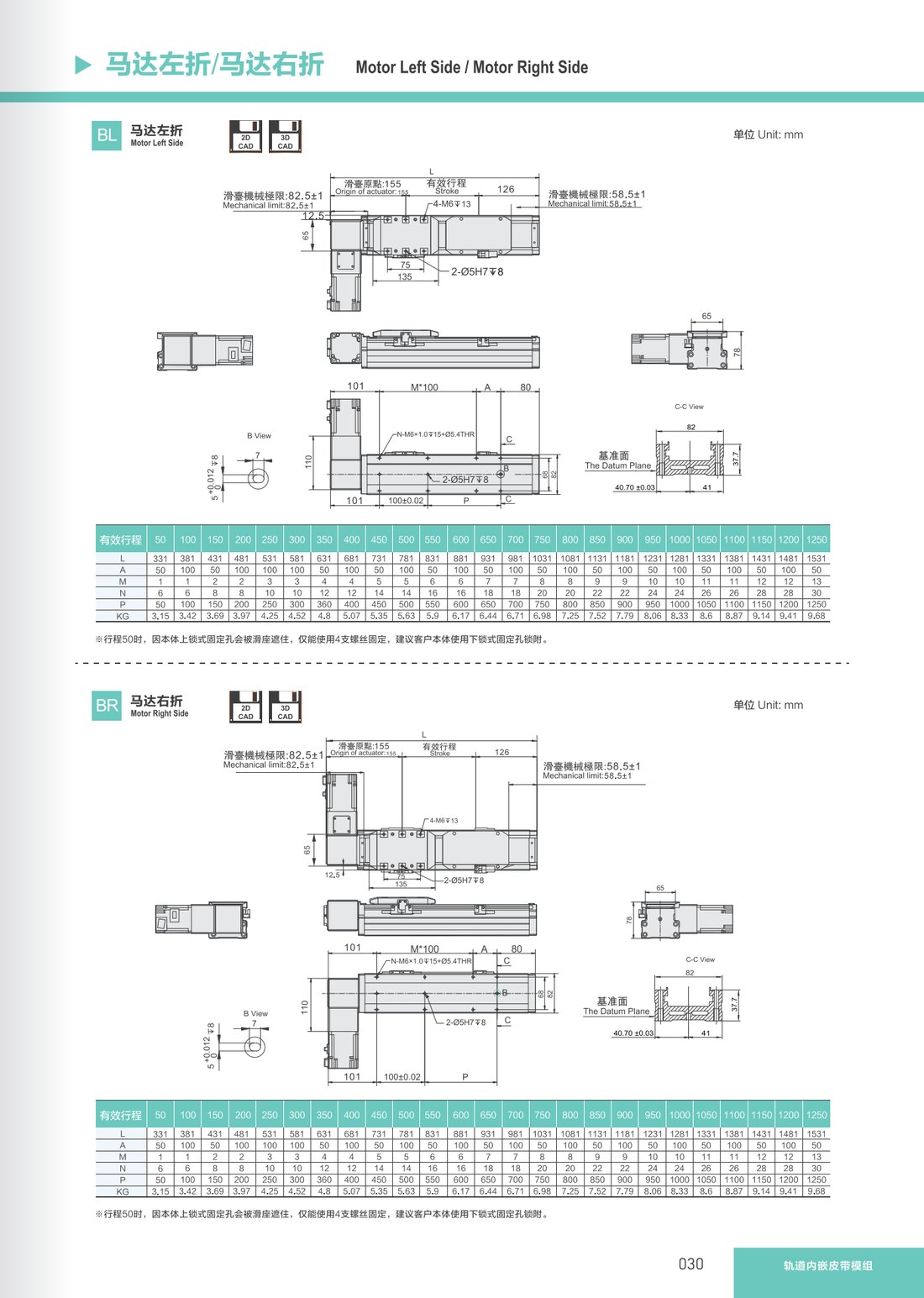

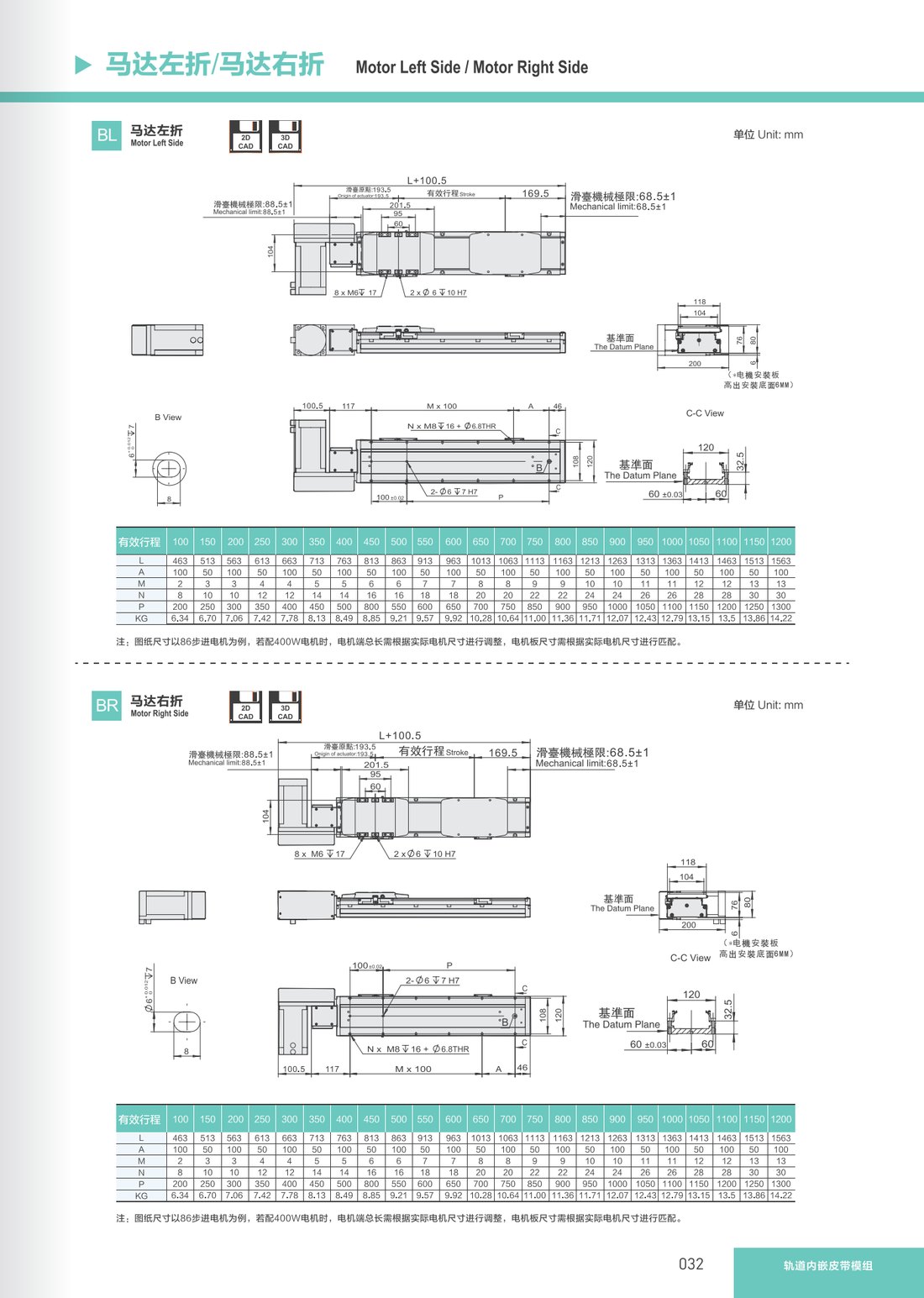

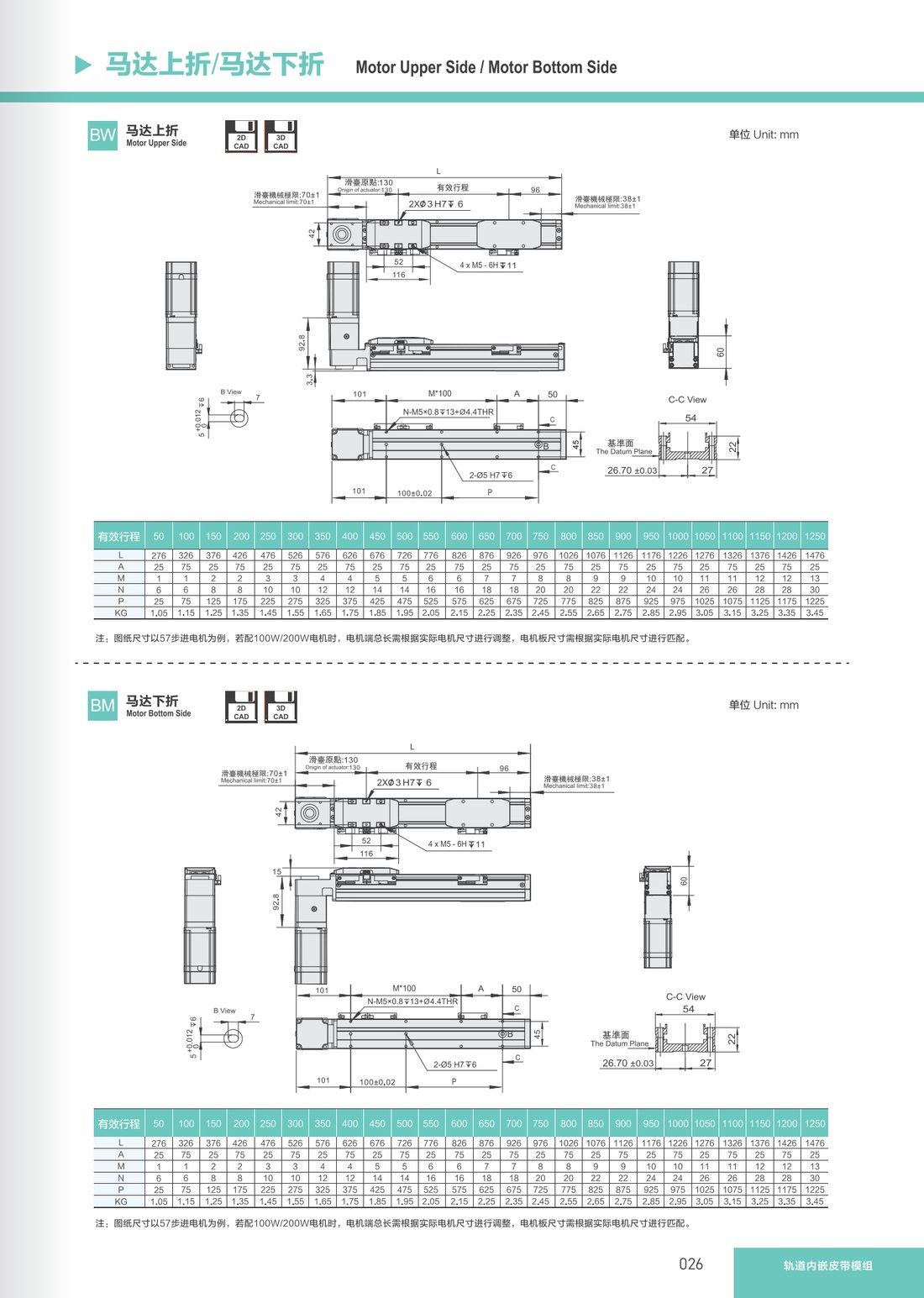

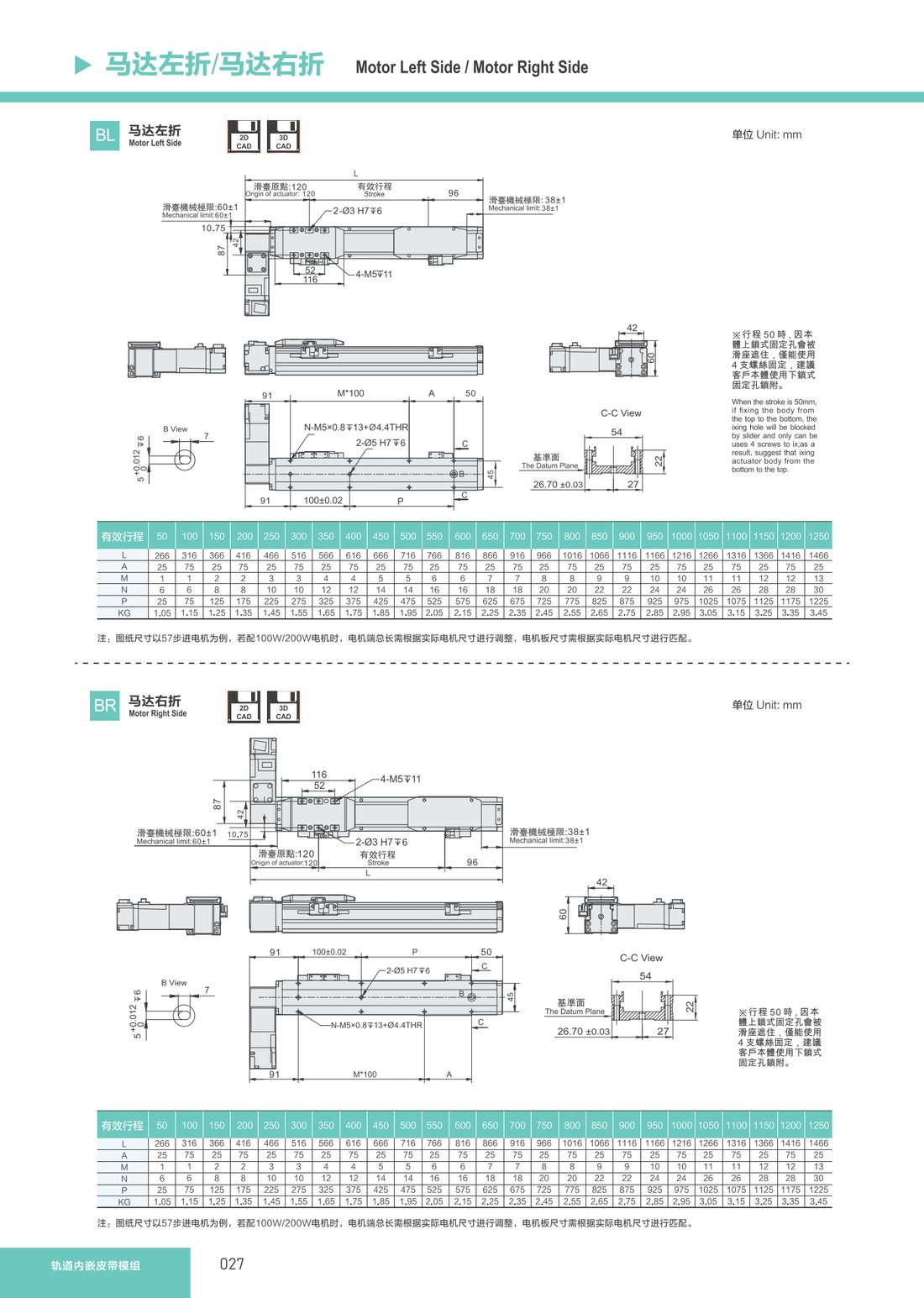

Upper / bottom / left / right folded
Product Advantages

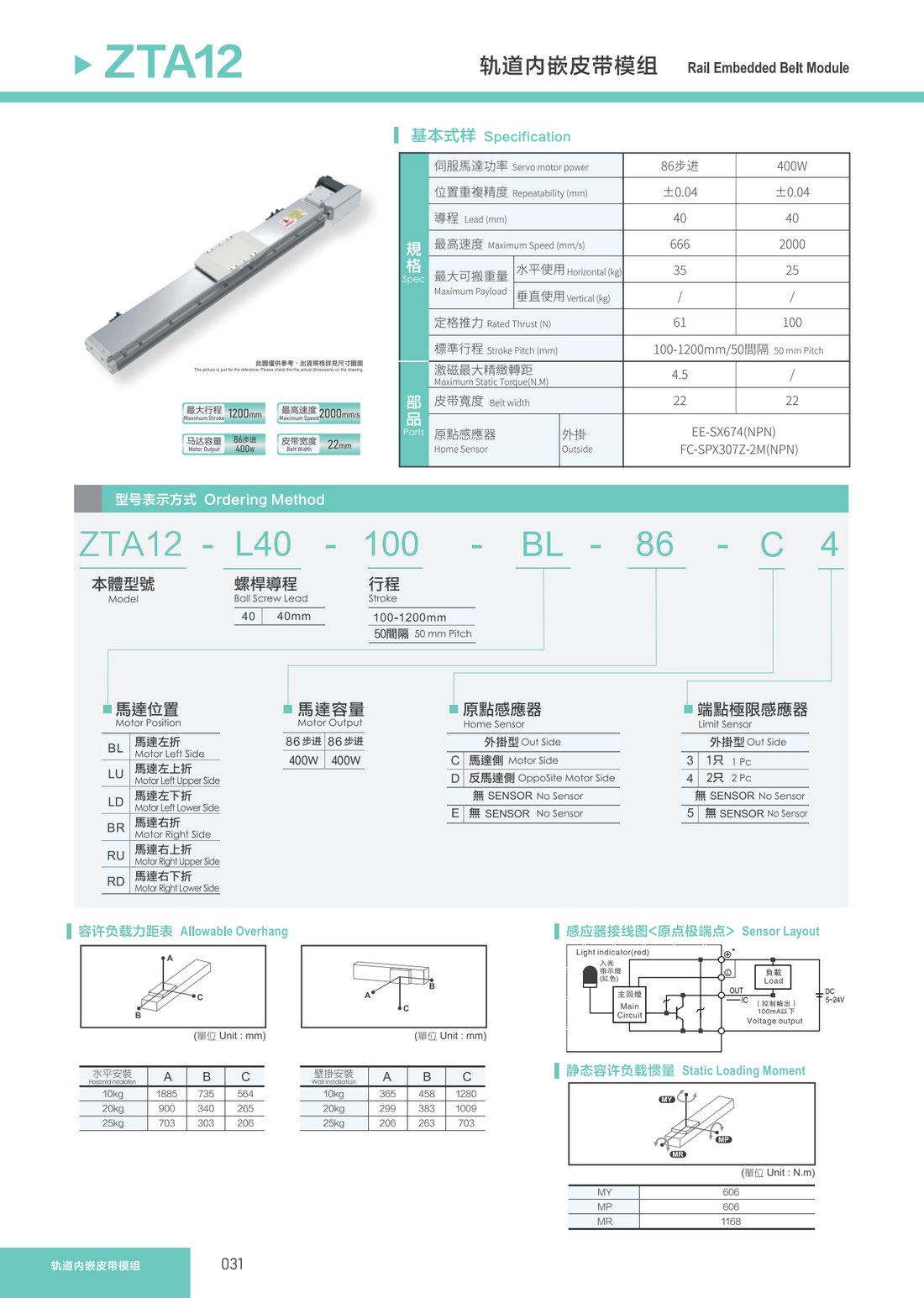

Compact rail-embedded belt driven linear modules
Zhongbai Robot ZTA Series rail embedded belt modules are suitable for compact belt-driven motion, folded motor installation, and automation equipment.

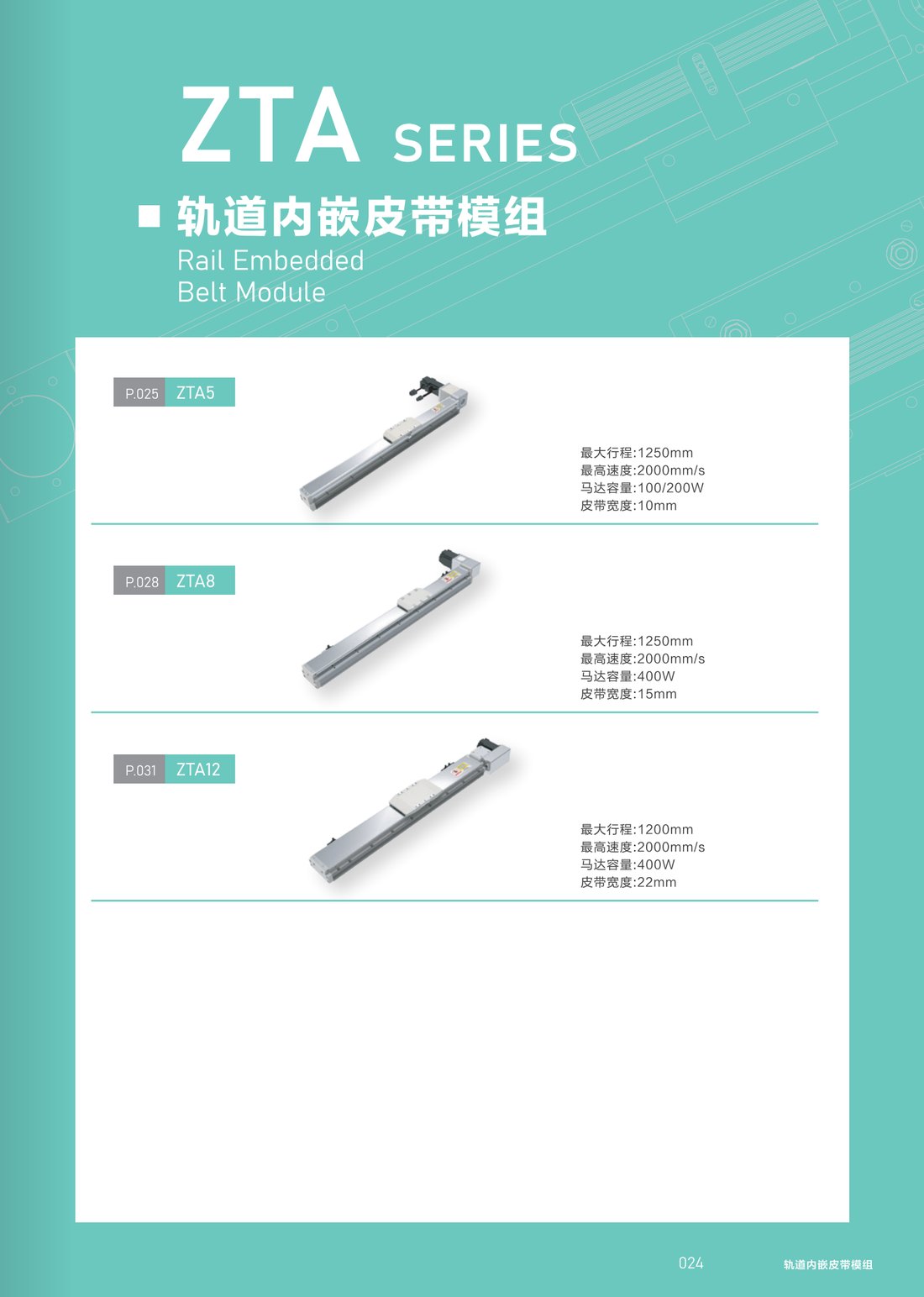

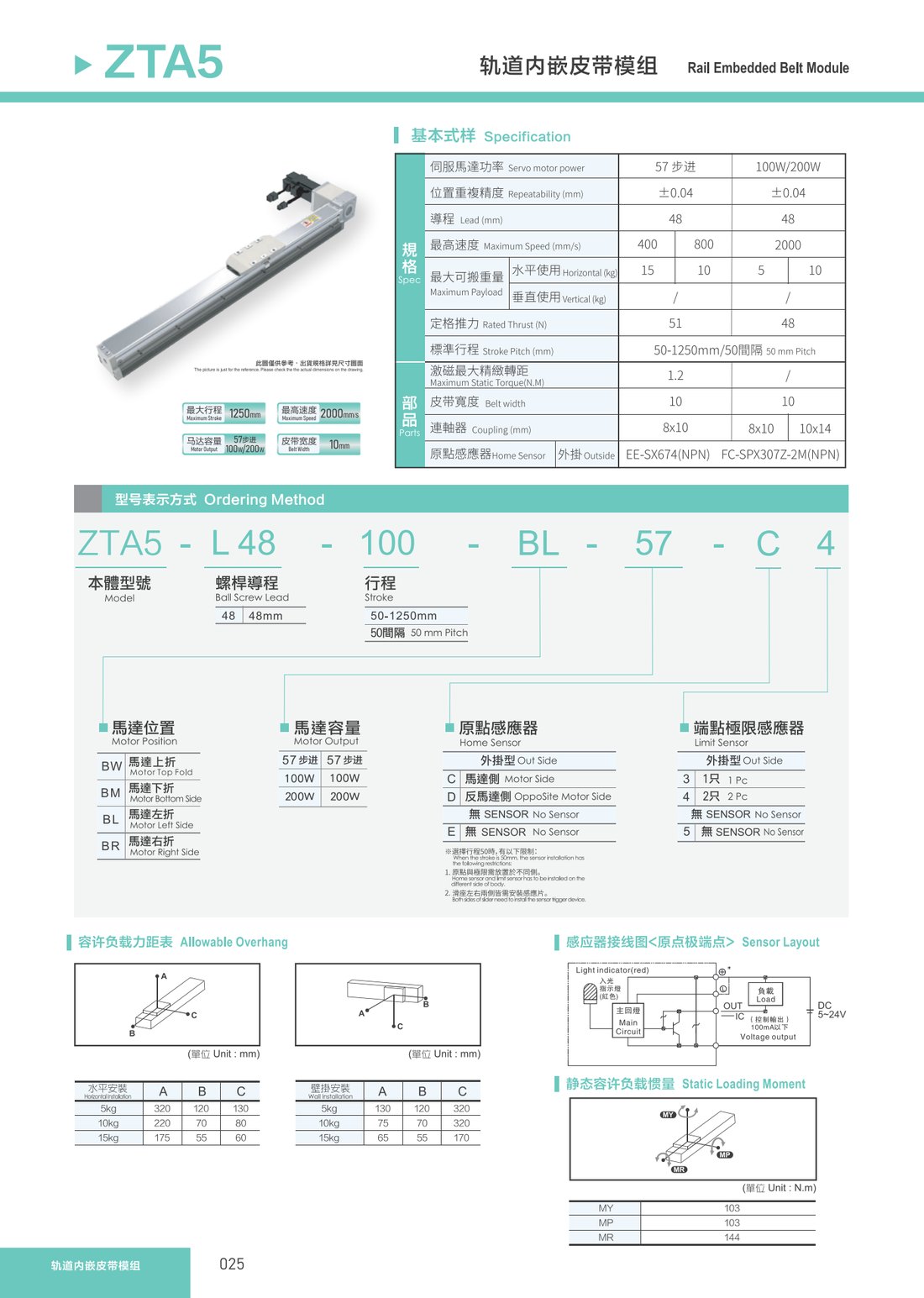

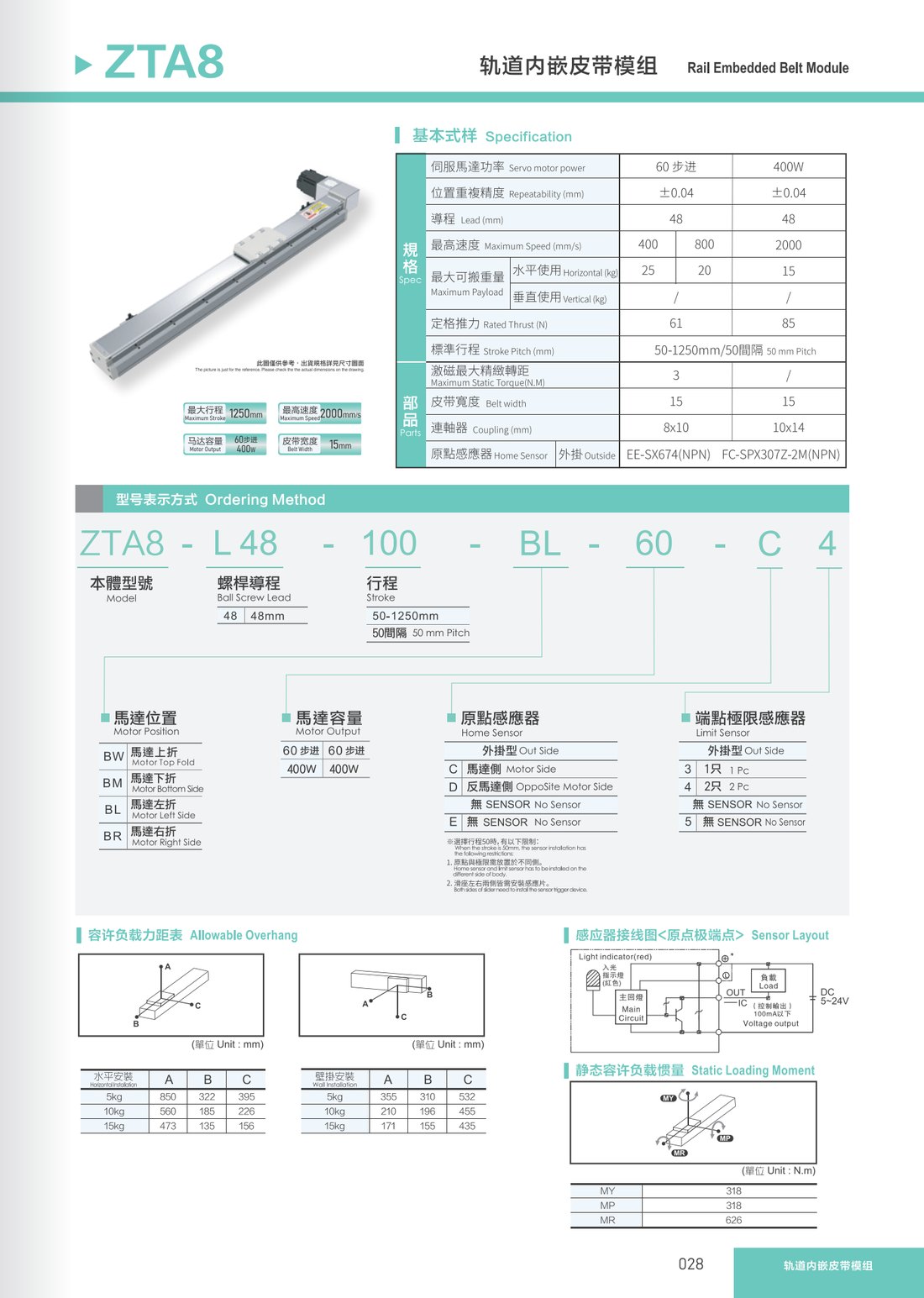

ZTA5, ZTA8, and ZTA12 series covering 10 mm, 15 mm, and 22 mm belt widths
ZTA5, ZTA8, and ZTA12 series covering 10 mm, 15 mm, and 22 mm belt widths.
Repeatability: ±0.04 mm for fast light-duty positioning in compact spaces
Repeatability: ±0.04 mm for fast light-duty positioning in compact spaces.
Supports upper, bottom, left, and right folded motor installation for easier machine-space clearance
Supports upper, bottom, left, and right folded motor installation for easier machine-space clearance.
Maximum speed up to 2000 mm/s for short-to-medium stroke transfer, handling, and loading/unloading applications
Maximum speed up to 2000 mm/s for short-to-medium stroke transfer, handling, and loading/unloading applications.
Applications
Typical Applications
Model Reference

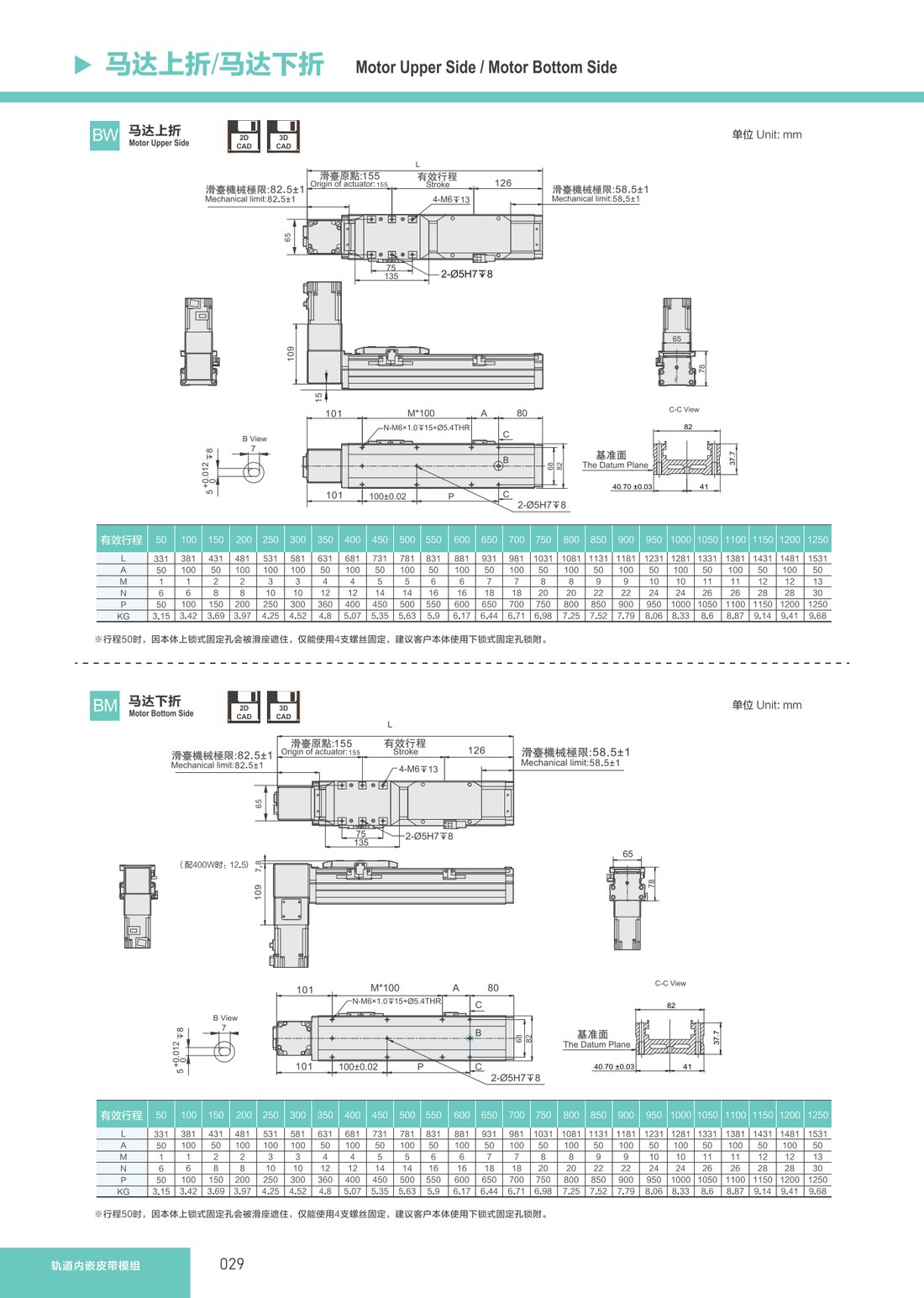

Series Model Images and Catalog Pages
Use these images to compare model structure, installation form, and specification ranges before requesting drawings.
